Safari 20x7 Tri Axle Flatdeck Trailer 3500kg GVM
✓ FREE WOF & Reg on all trailers
✓ FREE delivery & pickup available for Christchurch & Nelson
✓ Delivery nationwide to local depot's
Please get in touch for more info about shipping rates for this trailer.
Safari 20x7 Tri Axle Flatdeck Trailer 3500kg GVM is backordered and will ship as soon as it is back in stock.
Make Enquiry
Drop your email here, and we'll be in touch with more information about this product or to answer any questions you may have.
Safari 20x7 Tri Axle Flatdeck Trailer 3500kg GVM
Description
Description

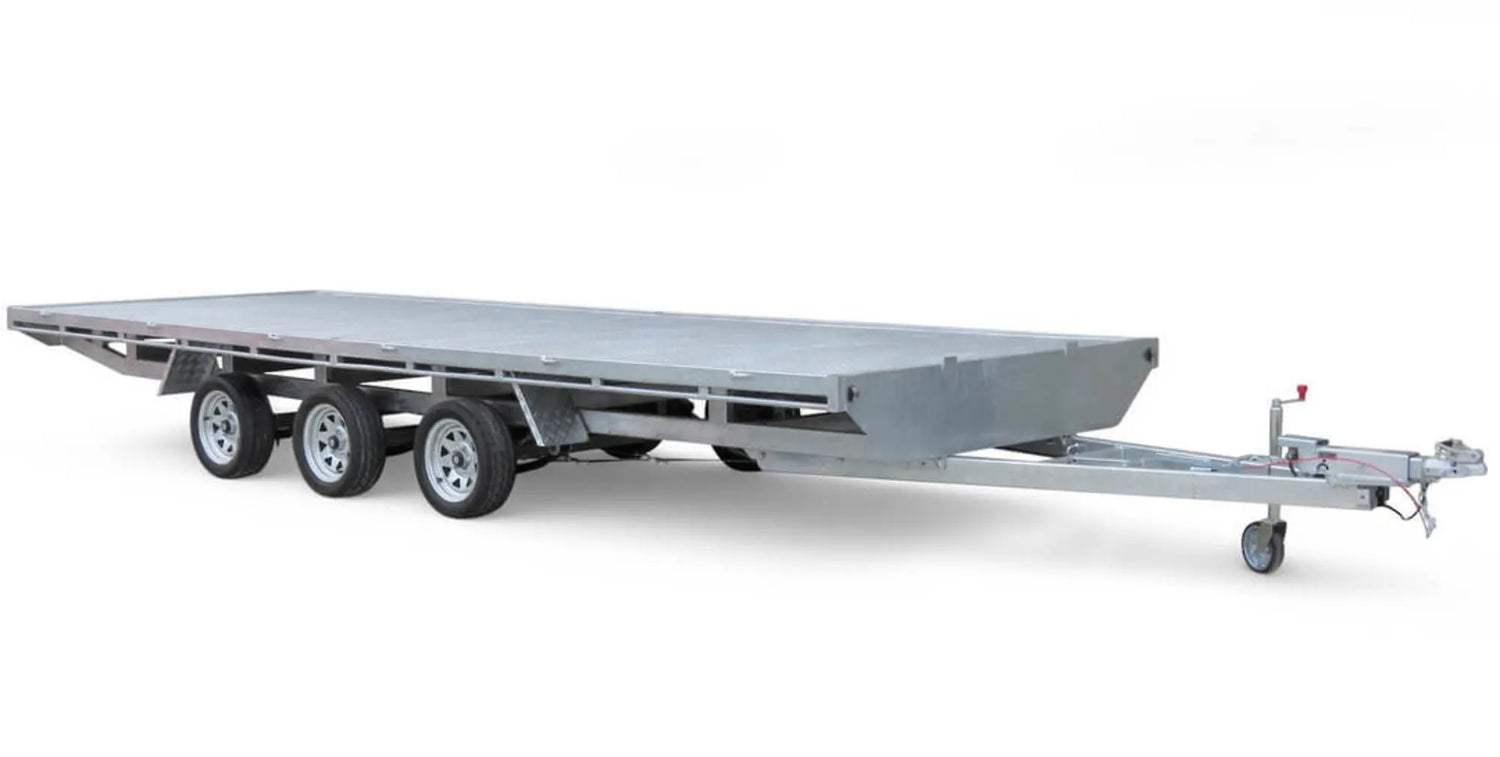

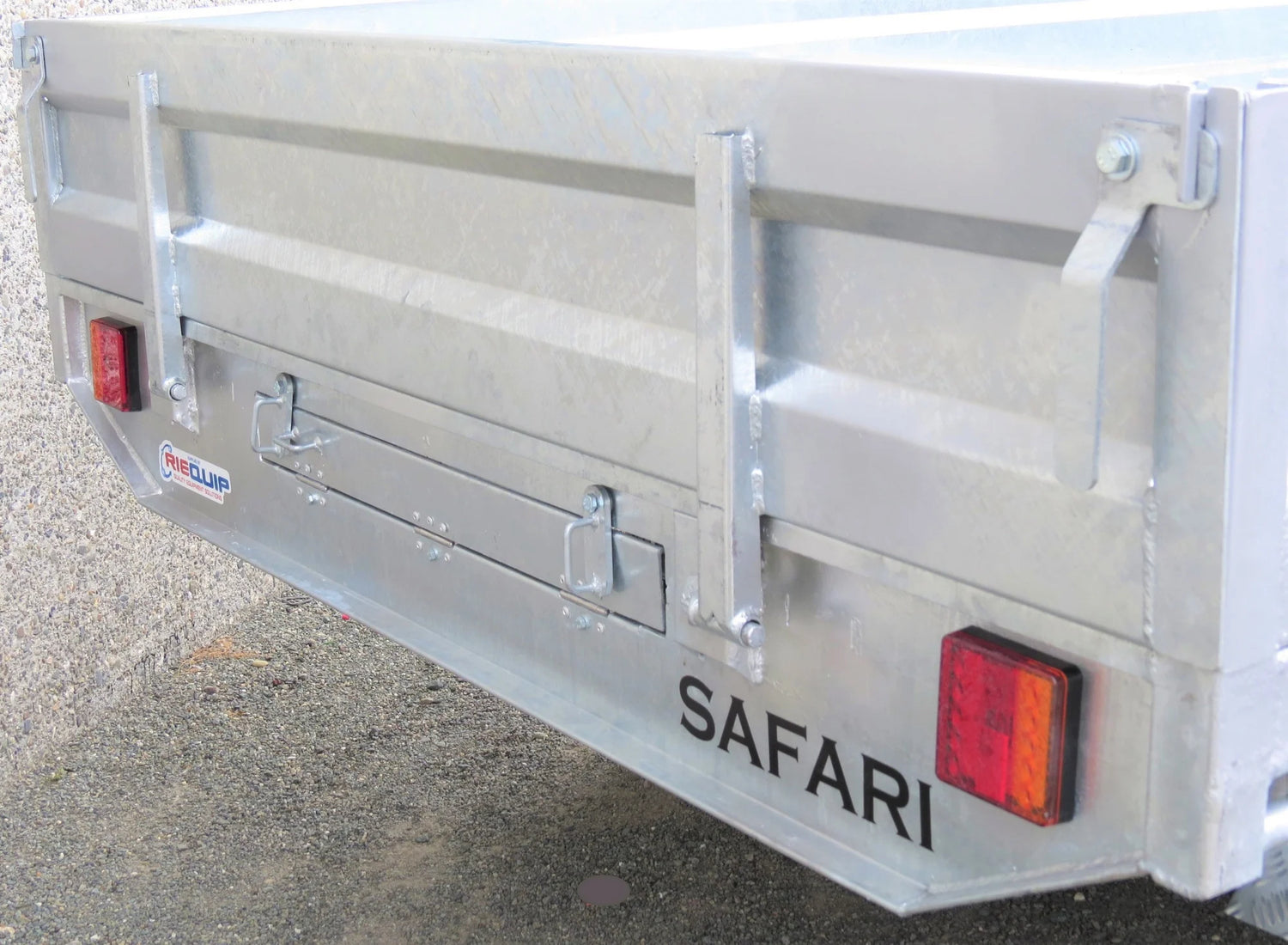

20’ x 7’ Safari Tri Axle Flatdeck Trailer Braked 3500kg GVM
Engineered for serious performance, this tri‑axle flatdeck trailer is built to thrive in rugged Kiwi conditions. Whether you’re hauling equipment for work sites, shifting supplies on lifestyle blocks, managing daily farm tasks, or handling demanding heavy‑duty towing jobs, the Safari 20x7 delivers unmatched stability, strength, and reliability. Featuring the premium European Knott 3500kg brake kit for superior braking control and safety, it provides exceptional stopping power and smooth, stable towing even under heavy loads. Its robust construction, advanced braking system, and superior load‑handling capability make it a versatile solution for a wide range of commercial and rural applications.
Key Specifications
Braking System: European Knott 3500kg Brake Kit – no electric brake controller required. Designed by Europe’s braking specialists, this premium system delivers exceptional stopping power and reliability for 3500kg trailers.
- 4‑wheel braking for even axle wear and extremely stable, controlled braking
- Built‑in handbrake that activates all four wheels for improved safety
- Cast lockable coupling with a precision‑machined coupling head for a tight, rattle‑free fit
- No electronics or wiring, allowing towing with any suitably rated vehicle
-
Auto‑Reverse function so you can reverse without leaving the driver’s seat
- Safe to use across multiple 3500kg‑rated tow vehicles—no in‑cab controllers needed
- Compact double‑row angular bearings, sealed‑for‑life, maintenance‑free, and backed by a 100,000km guarantee
This Knott 3500kg braking system offers unmatched durability, smoother towing, and dependable performance for heavy‑duty New Zealand trailer applications.
- Axles: Oversize 65mm for ultimate durability
- Spring hangers: Super-tough, over-engineered built to handle rough terrain
- Suspension: 7-leaf spring with rocker design for even load sharing
- Tyres 195 R13C
- Jockey wheel: Industrial folding type
- Plug: Standard 7-pin 12V/24V
- Lights: Multi-volt LED — 12V & 24V compatible (tow with car, ute, or truck)
- Wiring: Fully soldered — no clip-together connections that can fail over time
- Tie-downs: Heavy-duty rails on both sides for secure load restraint
- Ramp storage underneath deck (ramps optional extra)
- Durable galvanised wheels
Capacity & Dimensions
- Trailer deck size: 20’ x 7’
- Internal deck dimensions: 6000mm x 2100mm
- Drawbar length: 1720mm
- Deck height: 725mm from ground
- Tare weight: 1120kg
- Gross Vehicle Mass GVM: 3500kg
- Maximum payload: Up to 2380kg
Construction
- Fully hot dipped galvanised for superior rust protection
- Checker-plate steel floor for added strength and grip
- Drawbar: RHS box section 100x50x4mm
- Main chassis: RHS box section
- Heavy-duty safety chain with rated D-shackle
- Heavy-duty components throughout, including spring hangers and brakes
- This trailer is not manufactured in China!!
- Built super strong — no shortcuts here
- Trailers are shipped fully assembled
Optional Extras
- Ramps
- Rear builders rack
- Spare wheel
Why Buy a Safari Trailer?
- Proudly New Zealand owned and operated
- Commercial‑grade, heavy‑duty trailer with long-lasting galvanised durability
- FREE WOF & REG included - ready to tow immediately
- Solid, reliable, and built to handle real NZ conditions
- 2-year parts warranty and 10-year structural warranty for peace of mind
